Register a Network on OnFinality

OnFinality supports registering a network specification for any Substrate Network. This allows customers to then deploy any number of nodes using our automated deployment tools

Registering a new network specification on OnFinality is free, and takes only 10 minutes, all you require is a well created Docker image for your network hosted in DockerHub or GitHub Image Repository. In this tutorial, we'll add the network-spec for a custom network so that later you and your team can deploy your own nodes into it.

In this tutorial, you will learn how to register a new network spec in OnFinality.

Preparations

1. A well constructed public substrate-based image on DockerHub or GitHub (Docker image guidelines here)

2. A workspace with credit card bound

We strongly recommend that you use the automated docker build and publish GitHub actions that we have prepared to ensure that your image is well constructed and automatically published to DockerHub.

Steps

Create a Network Spec

1. Firstly, Login (opens new window) to your OnFinality account and go to the Networks page. Here, click on Create Network Spec up in the top right of your screen.

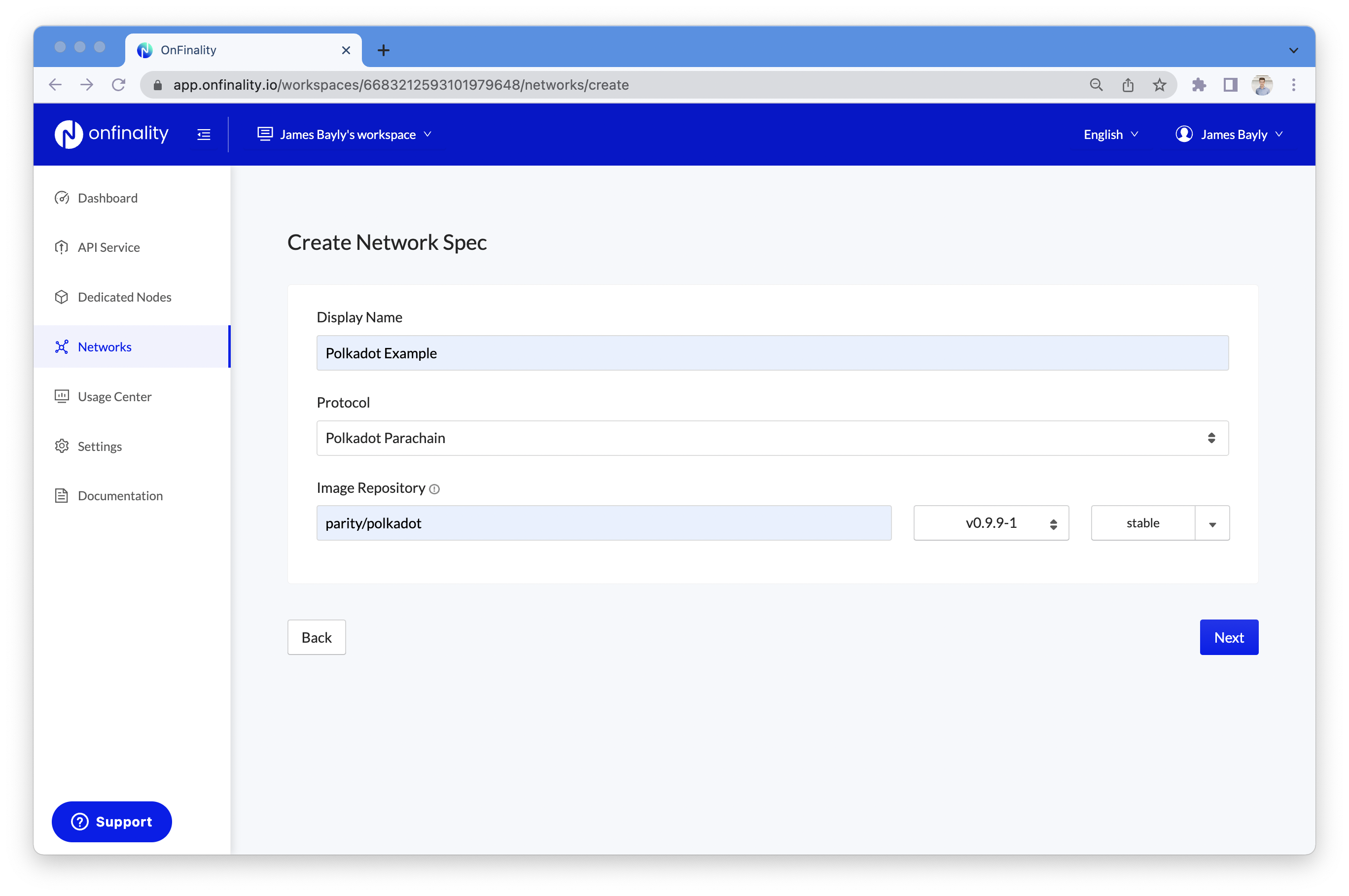

Enter Network Details

On this page you'll enter some key information about the network that you are joining or registering

Currently we only support joining or creating custom substrate networks (and there are plenty of them!) but this will be expanded in the future.

1. Display Name: Give the network a memorable name

2. Protocol: Set the protocol your network uses

Substrate - A substrate stand-alone network or relay chain
Polkadot Parachain - A parachain on one the polkadot relay chains, Kusama parachains included.

3. Image Repository is the public docker name of the network's nodes. We support the following repositories

4. Image Repository Version is the specific tagged version of that repository you want to take the code off

Versions must be labelled with specific version tags, ideally with semantic labelling. OnFinality does not support the lastest tag as we can’t tell what version exactly it is when nodes are deployed.

When publishing a new version, you can upload two tagged versions to Dockerhub, a latest and a semantically versioned one that is the same underlying image.

Once you've entered all details on this page, click Next.

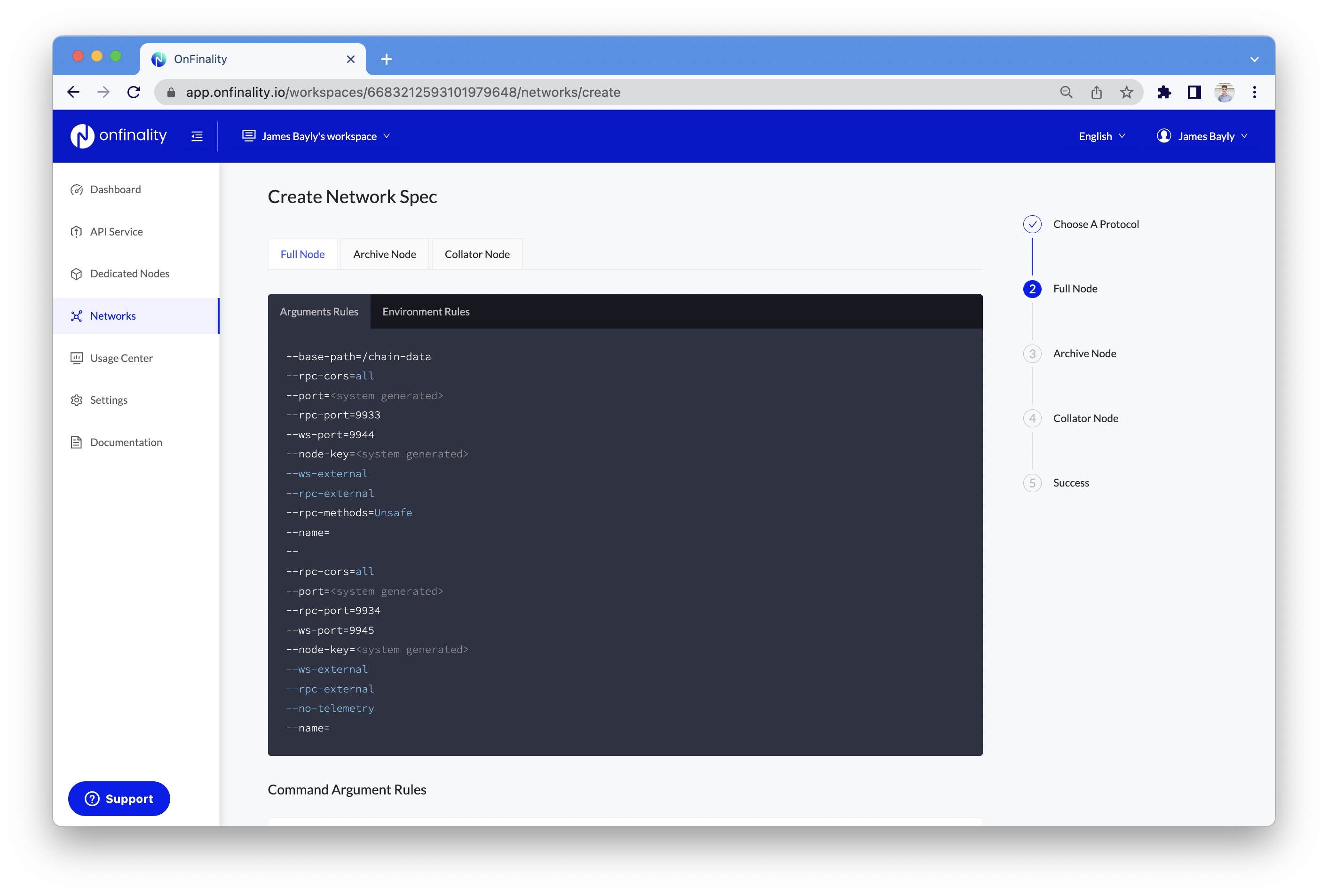

Add Network Argument Rules

We will then inspect the image version that you submitted and attempt to guess the arguments that you need to run the image for each different node type.

For each node type, please confirm all the arguments and configuration steps

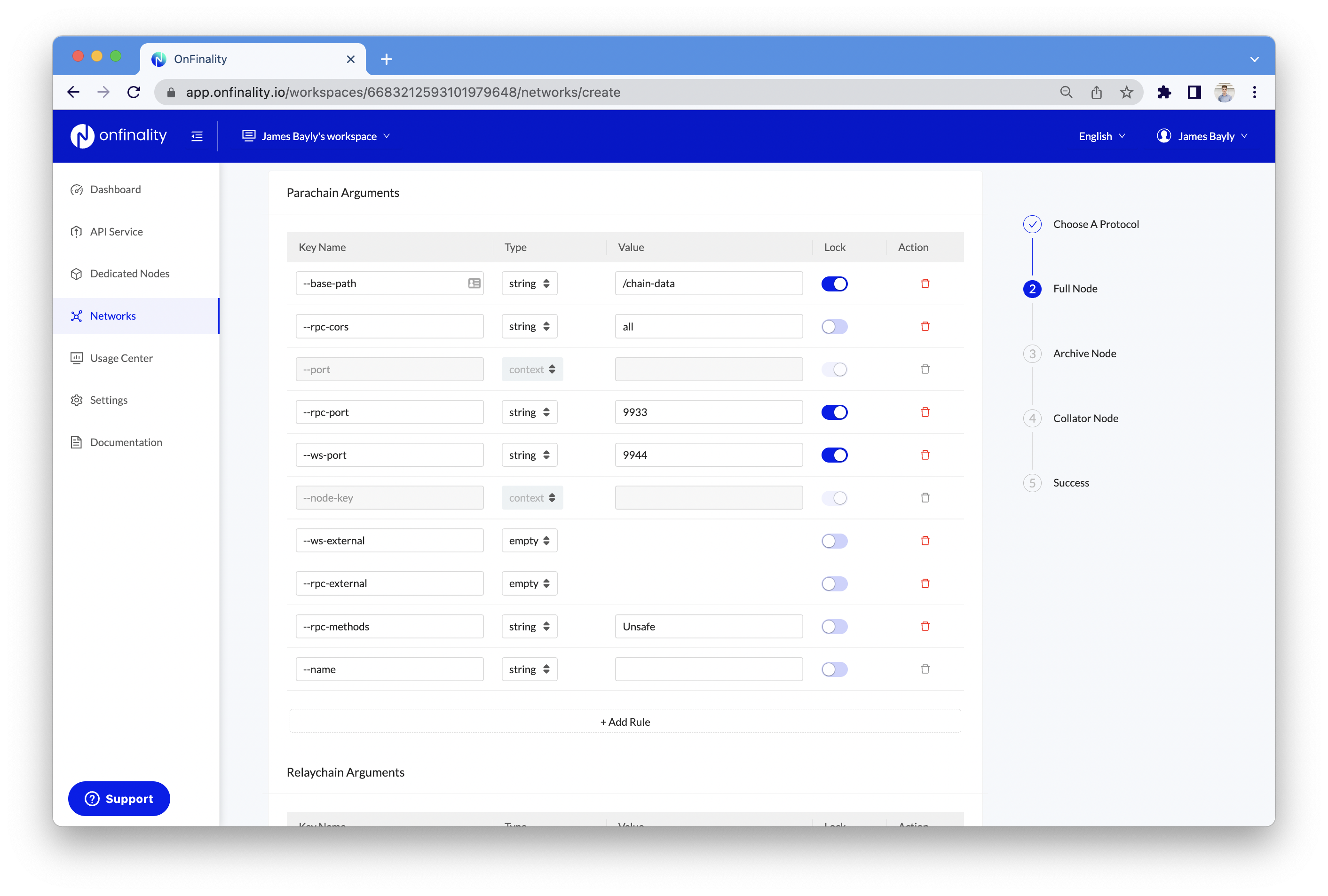

Arguments

• Please provide the arguments required to start the parachain node

• The Value represents the default value of that argument

• Enabling Lock will mean the user can not override this default argument value

Environment Rules

• If the node requires certain values to be set on the environment, you can enter them here

• Enabling Lock will mean the user can not override this default environment value

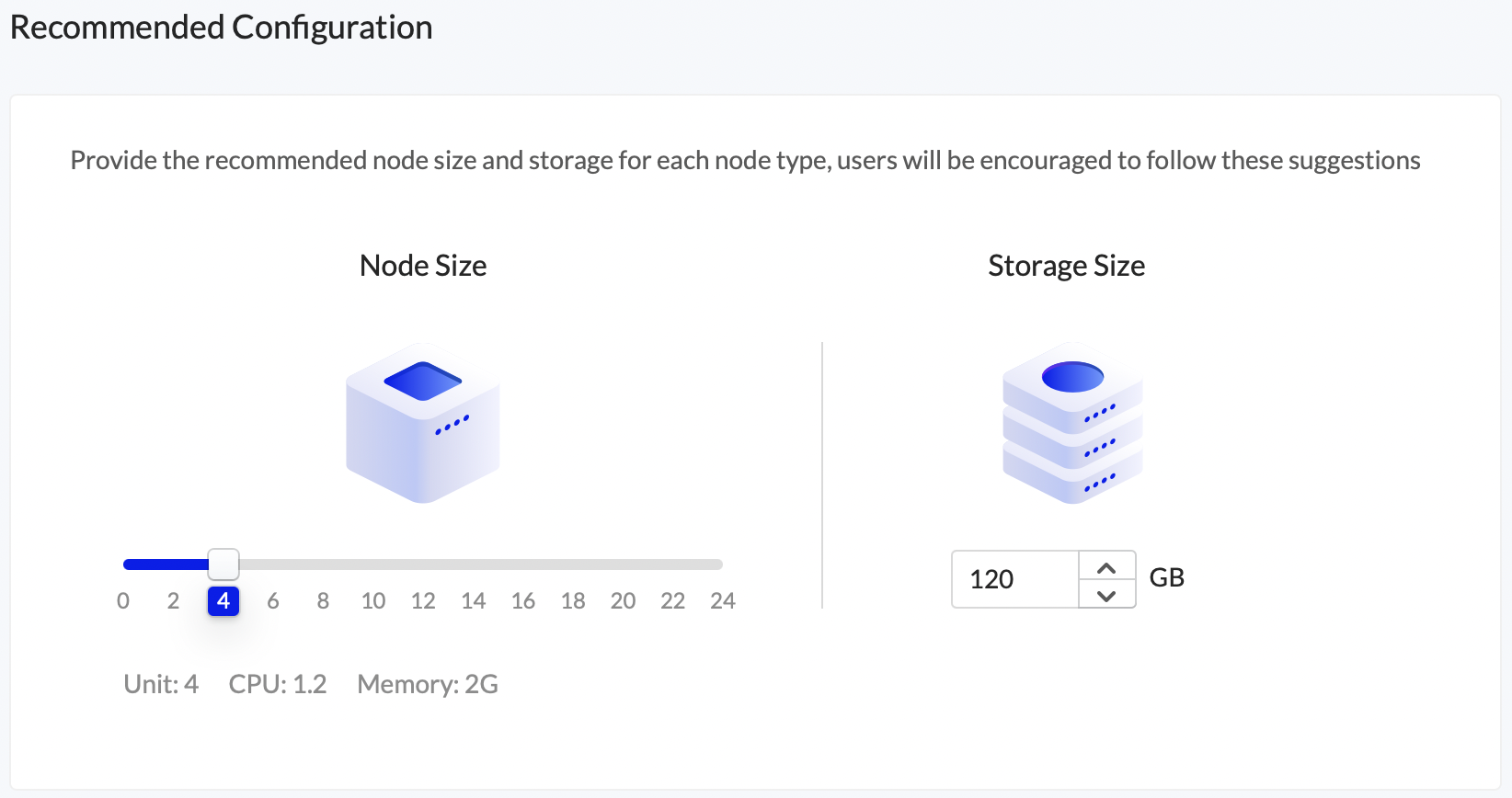

Recommended Configuration

• Please set the recommended node size and storage size for each node type. This will be the default when a user goes to create a new node from this network spec.




Congratulations, now go add your own node to this network

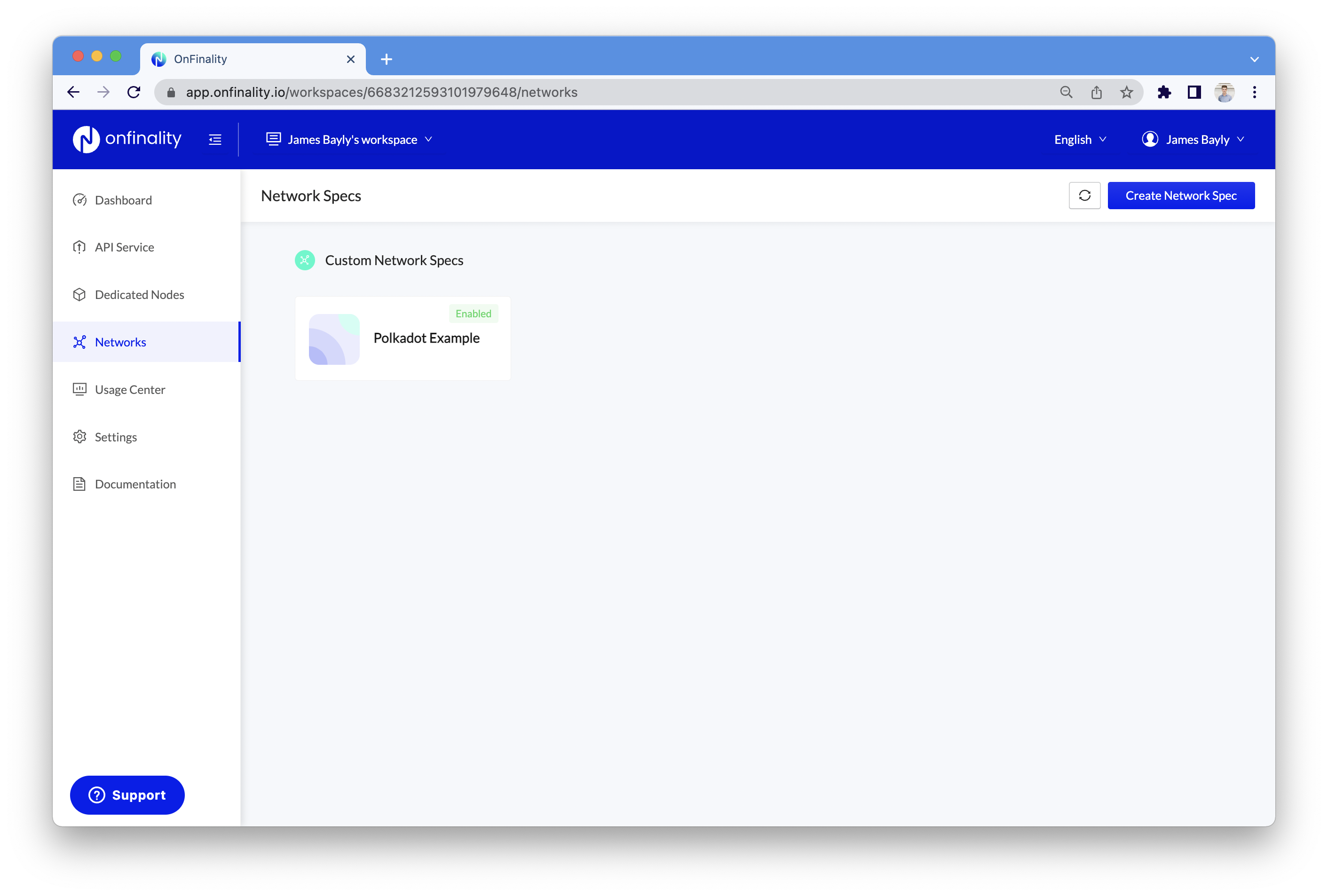

You'll now see the custom network you’ve created Networks page. We strongly suggest that you attempt to deploy a test node using the Deploy a Dedicated Node in your new custom network feature to verify that you have configured the node correctly.

Alternatively you can skip right through to publishing your new network spec to our node marketplace.
